Universal Testing Machine IBMU4 2000. Capacity 2000 kN.
IBMU4-2000-MD2W_Luis escalera_02Máquina Universal de Ensayos IBERTEST IBM4-1000-MD2-WIBMU4_2000_Cizalladura_Antonio_universal-testing-machine-installedTensile test proportional specimenSpecimen with machined head hydraulic material testing machine-IBMU4 seriesTensile test corrugated steel IBMU4 seriesLower gripping head universal testing machine

Hydraulic universal testing machine – IBMU4 series

Available up to 3000 kN capacity.

Double test space is ideal for users that change in a short space of time tensile test and compression test, bending test, etc. A test zone is set up to the tensile test and the second test area is configured for compression or flexure test, eliminating changing times test accessory.

Compact design test high capacities without excessive height in the laboratory.

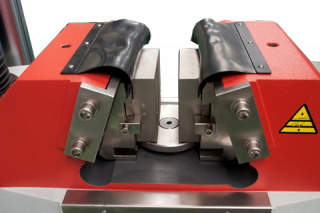

Hydraulic gripping heads embedded in intermediate crossbar for remote management. Remote controlled opening and closing of jaws and positioning of intermediate crossbar

Including bending and compression devices within the standard supply.

Universal Testing Machine IBMU4

Consultation or budget requests

Product Description

Productivity and large capacity with double test space

IBMU4 series is characterized by a material testing machine with hydraulic drive, which provides a high productivity to users performing several types of materials testing in a short period of time.

Providing two test areas on the same machine, we can get ready for 2 different types of test, first a tensile test in integrated hydraulic gripping heads and secondly, a compression test, bending, etc.

The capacity reached by this series of machines is 2000 kN, which makes them an ideal choice for testing on corrugated steel structures, thick metal cylinders, chains, etc.

Advantages for materials testing

  • Double testing space to optimize test changes.
  • Execution of test 100% automatic, the movement of the hydraulic cylinder is performed by a high quality servovalve, ensuring high accuracy during the test.
  • Intergrades hydraulic gripping heads in the body of intermediate mobile crosshead, high stiffness and great clamping cylinders.
  • Automatic positioning of gripping heads by motorized screws.
  • 4 columns of high stiffness.
  • The force mesurement is performed by strain gauges load cell in series with the load piston.
  • The assembly formed by the hydraulic cylinder and piston are housed in the lower frame  providing a compact design consistent.
  • The test speed control could be done through force, displacement and strain.

Quality, calibration and more information

Testing machines IBMU4 series of Ibertest, have different testing devices which covers a large number of different tests to be performed and different materials such as:

  • Steel
  • Aluminum
  • Other metals
  • Composites
  • Wood
  • Cement
  • Concrete

Some of the test for this machines series are prepared for testing:

  • Bending test according to ASTM E290
  • Tensile test according to ISO 6892, ISO 1608, EN 10002-1 and ASTM E23
  • Shearing test
  • Compression test ASTM D695
  • Fatigue test (at low frequencies)
  • Others like NADCAP tests according to GE-S400, CREEP, ASTM E 139
  • Bending test

The maximum liability elements of IBERTEST testing machines are subjected to a thorough evaluation by our metrology laboratory where we have equipment calibrated and traceable as profile projector, hardness testers, roughness, coordinate measuring machine, calipers, thermometers, metrological reference tables, etc.

The IBERTEST testing machines not only ensure its quality through quality control of its components, but rather are checked globally and functionally, using a calibration by our calibration laboratory and official certification, accredited by ENAC (ILAC member) which issues a calibration certificate is valid internationally, according to standard ISO 7500-1 for calibration of test machines.


MODEL


IB-MU4-600


IB-MU4-1000


IB-MU4-1500


IB-MU4-2000


IB-MU4-3000


Maximum load


600 kN


1000 kN


1500 kN


2000 kN


3000 kN


Class according to ISO 7500-1


Class 0.5


Load measurement


Strain-gage load cell


Measurement range


From 2% to 100% of the load cell nominal capacity


Load resolution


5 digits with floating point


Load cell repeatability


Better or equal to ± 0.05 %


Columns nº (diameter)


4 (ø 100 mm)


4 (ø 110 mm)


4 (ø 125 mm)


Screw drivers nº (diameter)


2 (ø 120 mm)


2 (ø 140 mm)


Piston stroke


250 mm


Maximum loading speed


80 mm/min


50 mm/min


Piston displacement speed


160 mm/min


100 mm/min


Crosshead elevation speed


350 mm/min


200 mm/min


Free distance (between columns)


540 mm


565 mm


760 mm


870 mm


Max.distance between tensile gripping heads (piston stroke included)


780 mm


1000 mm


1450 mm


Max. distance between compresion plates


780 mm


850 mm


1250 mm


Displacement resolution


0,001 mm


Testing frame dimensions:(width x depth x height) mm


910 x 790 x 2640


1420 x 1150 x 3800


1500 x 1150 x 3860


Testing frame approx. weight


2900 kg


10.120 kg


11.000 kg


Hydraulic workframe dimensions (width x depth x height) in mm


910 x 980 x 1100


Approx weight of the hydraulic workframe


325 kg


Power supply


Three-phase 380 V plus neutral and earth, 50/60 Hz (to specify)
