  • Electromechanical Material Testing Machine – EUROTEST Series

    Customized and flexible design, single testing space or double testing space. Material testing machine developed to meet the highest standards in materials testing according to international test standards: ISO 6892 tensile test, IS 1608, EN 10002-1, ASTM D695 compression test, bending test ASTM E290, test according to NADCAP.

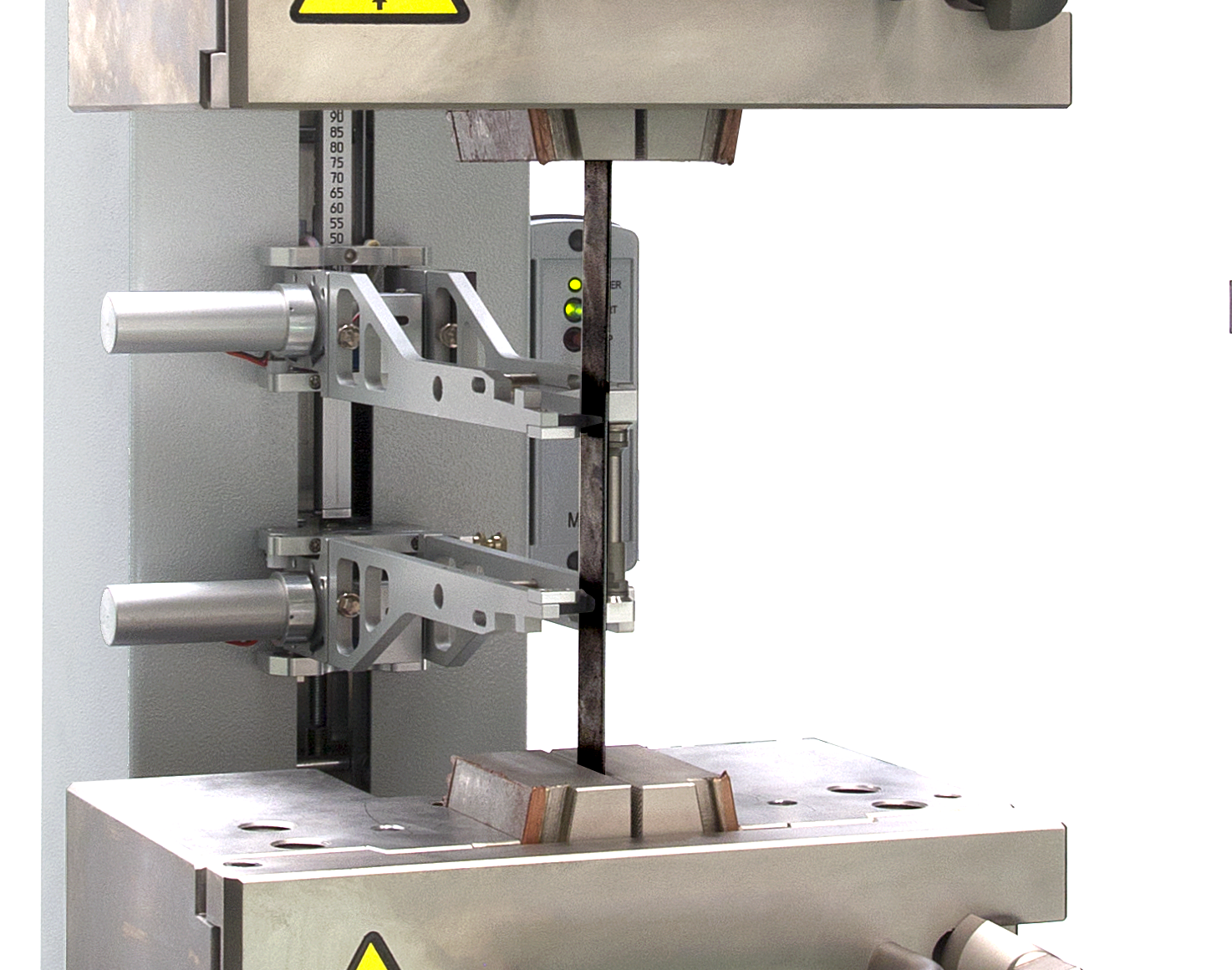

    Maximum precision determination of the key parameters in multiple materials testing, such as the yield strength, 0.2% upper limit and lower creep rupture load, ultimate elongation, etc. Automatic calculation of anisotropy and sourness by combining axial and transverse strain gauges extensometers.

    The available settings for EUROTEST series, of IBERTEST, are almost limitless. EUROTEST Electromechanical material testing machine can adapt to width, length, capacity (up to 1200kN), test standards, etc.. required.

    The combination of a versatile framework with dozens of testing devices and interchangeable load cells, environmental chambers, furnaces, extensometry (manual and automatic) … give this a testing machine wide possibilities for all types of static and fatigue tests at low frequencies.

    Consultation or budget requests

    Product Description

    The evolution of electromechanical testing machines

    The material testing machine of EUROTEST series, combines the experience of over 40 years manufacturing material testing solutions . It arises from the application of the latest advances in technology for material testing, to the previous models of electromechanical material testing machine , ELECTROTEST and ELIB series.

    Advantages of electromechanical machine for materials testing EUROTEST

    • Full adaptation to customer needs .

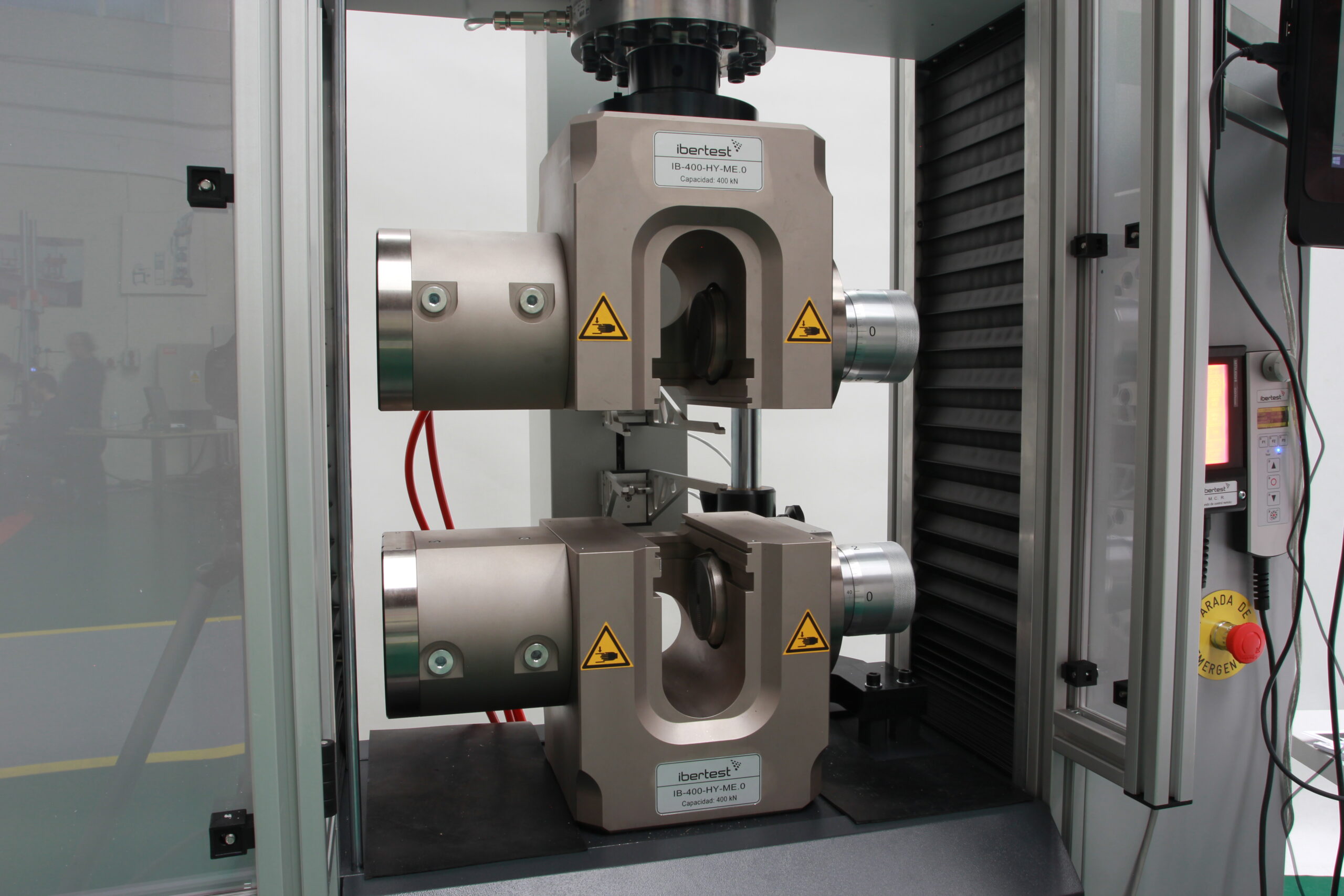

    • Single or double testing space, equipped with one or several interchangeable load cells.
    • Automatic recognition of installed load cell.
    • Configurable dimensions without compromising the maximum stiffness criteria.
    • Double prestressed screw balls drivers and chromed steel columns to guide mobile crosshead, ensuring optimum behavior against lateral loads and ensuring the conservation of axiality . This feature makes EUROTEST series the perfect solution for materials testing in leading sectors such as aeronautics according to NADCAP requirements.
    • Possibility to incorporate an axiality verification device.
    • Fully automatic operation with test force speed, displacement and deformation controled by servocontrol.
    • Total user safety
    • Driven by high performance servomotor
    • Special system transmission through belt and gears to ensure maximum system reliability, low power consumption, minimum noise

    More information

    The maximum liability elements of IBERTEST material testing machine are subjected to a thorough evaluation by our metrology laboratory where we have equipment calibrated and traceable as profile projector, hardness testers, roughness, coordinate measuring machine, calipers, thermometers, metrological reference tables, etc.

    All our machines go through a final and definitive verification of performance and functionality , being subjected to a calibration process by our official laboratory of calibration, accredited by ENAC ( ILAC member ) .

    These electromechanical testing machines are particularly suitable for tensile testing according to ISO 6892 , IS 1608, EN 10002 – 1, ASTM D695 Compression test , bending test, ASTM E290 , tests according NADCAP GE- S400 , CREEP ASTM E 139 , ASTM E190 test welds , shear test , test materials at high temperature EN1002 -5, ASTM E 1012, fatigue tests for constant amplitude BS EN ISO 7270, fatigue testing at low frequency NFA 03403 , tensile and compression tests on ceramic matrix composites.

    Application of any specimen type : standardized specimens with threaded or machined head , flat , welded metal joints mechanical and adhesive bonds among others.

    Wide variety of materials can be tested in the testing machine EUROTEST: steel, titanium , aluminum, wood , composites, plastics, elastomers , rubbers , biomaterials, cement, medical materials, prosthetic teeth.



    EUROTEST 50 & 100

    EUROTEST 200

    EUROTEST 300

    EUROTEST 400

    EUROTEST 500

    EUROTEST 600

    Class

    ISO 7500-1

    0,5

    From 0,5% to 100% FS

    Maximum load

    50 kN 100 kN

    200 kN

    250 kN 300 kN

    400 kN

    500 kN

    600 kN

    Load measurement

    Universal strain-gage load cell (tension-compression)

    Force resolution

    0,0001 kN

    Load cell Repeatibility

    0,025%

    Horizontal clearance

    500 mm

    650 mm

    720 mm

    Vertical clearance, distance between standard gripping heads

    Ajustable between 0 and 1300 mm

    Ajustable between 0 and 1400 mm

    Displacement speed

    From 0,001 to 1000,00 mm/min (other speeds on demand)

    From 0,001 to 500,00 mm/min

    Displacement measurement

    Encoder (digital pulse sensor)

    Displacement resolution

    0,1 micron

    GENERAL CHARACTERISTICS
    Dimensions: Testing frame (mm)

    1020 x 650 x 2450mm (width x depth x height)

    1200 x 650 x 2900 mm

    1550 x 690 x 2900 mm (width x depth x height)

    Approx weight ( without
    gripping heads )

    1000 kg

    1200 kg

    1400 kg

    2900 kg

    Power supply

    3x 380 V + N+ T, 50/60 Hz
